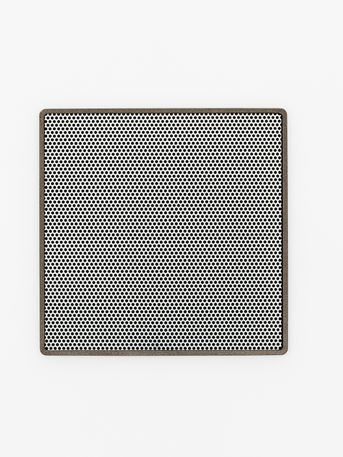

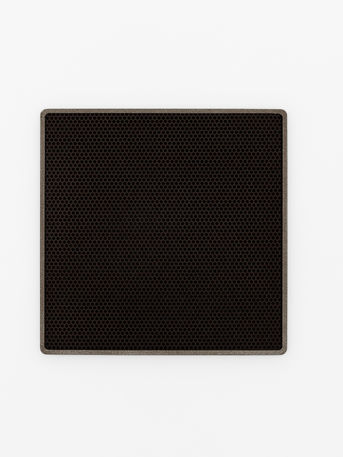

MICRO-FRAMED

Minimal Frame, Maximum Presence

The new Micro-Framed line redefines architectural integration through purposeful simplicity. Inspired by the sophistication of Magna’s NoFrame family, Micro-Framed pairs premium anodized finishes with your carbon-steel grille—delivering full-range, high-fidelity sound that blends effortlessly into contemporary interiors.

Design & Integration
  • Micro-frame aesthetic: ultra-slim visual boundary that sits quietly within the ceiling plane.


  • Premium finishes: refined anodized treatments complement wood, stone, lacquer, and textile palettes.


  • Grille: the carbon-steel magnetic grille attaches seamlessly, ensuring a crisp architectural look and effortless installation.

In-ceiling by design

Purpose-built for in-ceiling installation, Micro-Framed combines discreet presence with reliable performance—ideal for high-end residential projects that demand clean lines and coherent sound.​

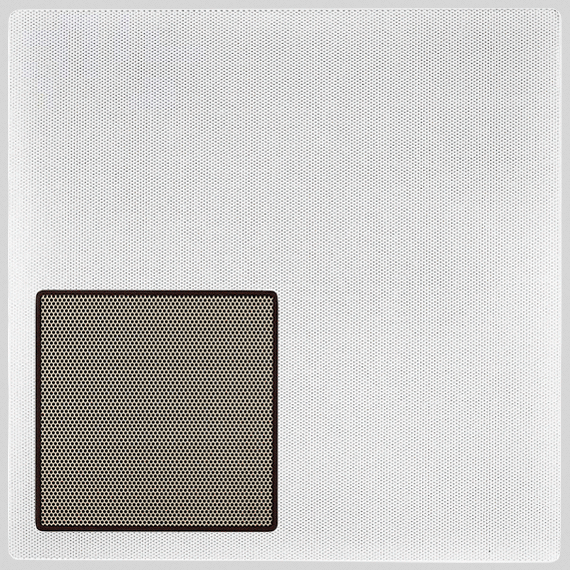

MicroFramed_comparativo_episode (2).gif
Performance
  • Full-range fidelity: immersive, room-filling presentation with precise detail and stable imaging.


  • Seamless voicing: tuned for natural timbre in music and clarity in dialogue.


  • Consistent coverage: designed for even listening across living spaces, kitchens, corridors, and media rooms.


Ready to experience Micro-Framed?

Request a demonstration in one of our dealers


S P E C I F I C A T I O N S

4.1″ I

105mm

Micro-Framed - Frente.png

4.1″  I  105mm

Model

Micro-Framed 3"

Placement Options

In Ceiling

Use
Distributed Audio

Enclosure

Aluminum Open Baffle

with Perforated Steel Grill

Recommended Amplifier
10W to 40W

2.4″  I  60mm

Micro-Framed - Lado.png

Drivers

3” Full Range

Impedance
16 Ohms

Frequency Response

100Hz - 20KHz

Sensitivity
91dB 1W/1m

Lighting

No

Weight

1.57 lbs  |  0.71 Kg

5.1″ I

130mm

Micro-Framed - Frente.png

5.1″  I 130mm

Model

Micro-Framed 4"

Placement Options

In Ceiling

Use
Distributed Audio

Enclosure

Aluminum Open Baffle

with Perforated Steel Grill

Recommended Amplifier
10W to 60W

2.5″  I  65mm

Micro-Framed - Lado.png

Drivers

4” Full Range

Impedance
16 Ohms

Frequency Response

90Hz - 20KHz

Sensitivity
91dB 1W/1m

Lighting

No

Weight

1.67 lbs  I  0.76 Kg

Painted

C O L O R S

Alumínio Pintado.png

Anodized (ENCLOSURE)
