The Outline 2D employs two 3" full-range drivers and can be configured in mono mode or stereo configuration, increasing flexibility for residential and commercial projects. It operates at 8 or 16 Ohms with a recommended power of 80W, balancing presence and architectural discretion.
The Outline 3D and 3DC models use three 3" full-range drivers. The 3D Cinema version incorporates a 1.5-way design with a dedicated crossover, developed for LCR and surround applications in home cinema systems. Both operate at 6 Ohms with a recommended power of 120W, prioritizing vocal clarity and spatial definition.
Outline
Series
Linear design that transforms
walls into a sonic experience
It is sound designed to be seen — and heard — in perfect harmony with the space
The Outline Series was developed for projects where audio must integrate with architecture through precision, controlled visual presence, and clean geometry. Its linear format creates continuous sound surfaces, ideal for indoor and outdoor applications, delivering wide and uniform coverage with a 120° dispersion, ensuring clarity and balance across different spatial scales.
Comprising the Outline LR, 2D, 3D, 3DC, 6D and 12D models, the series supports everything from distributed audio systems to home cinema and large-scale architectural installations. The aluminum construction, sealed design, and optional integrated LED lighting reinforce the concept of uniting sound, light, and architecture into a single formal language.
The aluminum enclosure is offered in multiple painted finishes, including the exclusive Argenta finish, intended exclusively for indoor use and applied only to the enclosure, with no grille option in this finish. Custom finishes are also available, expanding integration possibilities with specific materials, colors, and architectural concepts.

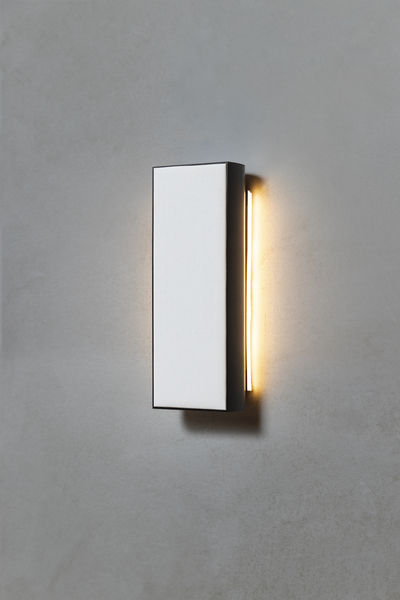

The integrated LED lighting, available in 2700K and 3000K, fully dimmable via PWM, reinforces the architectural character of the series, establishing a precise relationship between sound, light, and surface.
Finishes
The Outline Series was conceived to integrate with architecture from the very first glance. Models are available with fabric or aluminum grilles, allowing different visual expressions depending on the project context, from residential interiors to commercial and corporate environments.
For the LR, 2D and 3D models, an optional natural straw fabric grille is available, adding texture and character to indoor applications. Larger formats adopt a more technical and minimalist aesthetic, emphasizing linearity and visual continuity.
Performance
Designed to deliver consistent performance across multiple configurations, the Outline Series combines 120° sound coverage, acoustic efficiency, and robust construction, making it suitable for both indoor and outdoor environments. All models share the same dispersion philosophy and tonal coherence, ensuring uniformity throughout architectural audio projects.
The Outline LR features a 3" full-range driver per channel, operating at 8 or 16 Ohms, with a recommended amplifier power of 40W per channel, making it a versatile solution for distributed audio and multichannel systems.
.jpg)
For larger-scale installations, the Outline 6D and 12D increase sound pressure while maintaining control and coverage consistency. The 6D employs six 3" full-range drivers, achieving 98.5 dB SPL sensitivity, while the 12D expands the array to twelve drivers, reaching 101.5 dB SPL sensitivity. Both operate at 6 Ohms, with recommended amplifier power of 240W for the 6D and 480W for the 12D, making them ideal for expansive environments where architectural impact and acoustic performance must coexist seamlessly.
Across the entire series, Outline stands as a high-performance architectural audio solution, engineered for projects that demand aesthetic coherence, technical flexibility, and absolute control over the listening experience.
Design Finishes
Technical Specifications
Detailed technical data, drawings, and specifications are available in a dedicated area.
