Magnarray

Designed for large spaces.

Tuned down to every detail.

Scale, control, and intelligibility working together as a single system.

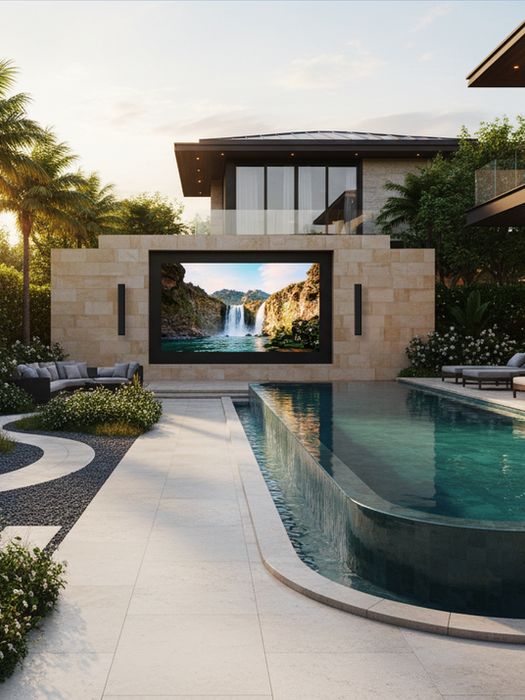

Magnarray is Magna’s column array loudspeaker line, developed around true array principles to deliver controlled dispersion, high intelligibility, and uniform coverage in large-scale projects. Its directional behavior makes Magnarray a precise solution for LED screen installations, leisure and hospitality areas, hotels, pool environments, and large spaces, both indoor and outdoor.

Available in configurations with 2, 3, 6, or 12 full-range 3” drivers, Magnarray allows systems to be accurately scaled according to the size and complexity of each project, while maintaining tonal coherence and efficiency. For applications that demand extended low-frequency performance, Magnarray can be combined with Magna subwoofers, from compact solutions in the Polly family to high-impact systems such as the Polly Tank Sub and the Rock series, creating balanced and high-performance sound systems. Magnarray can also be specified for home cinema, including dedicated configurations such as Magnarray 3D Cinema, where directional control and sonic integration are essential for immersive experiences.

When sound needs to cover large spaces with absolute precision.

The aluminum enclosure features a high-durability electrostatic powder coating, delivering a uniform finish designed to withstand sun exposure, humidity, and weather variations. The entire line is fully customizable in color, allowing seamless integration with the architectural concept of each project.

Finishes

Magnarray balances acoustic performance and architectural presence with ease. The line is available with aluminum grilles or fabric grilles, including selected fabrics suitable for outdoor use, ensuring visual stability and durability even in exposed environments.

Magnarray - Grill Gray Mixed Texture.jpg

Performance

Magnarray’s performance is defined by the relationship between driver count, sensitivity, and controlled dispersion, essential elements in vertical array systems.

The Magnarray 2D, equipped with two 3" full-range drivers, delivers 94 dB SPL (1W/1m) sensitivity, 8 or 16 Ohms impedance, and a recommended amplifier power of 80W, making it ideal for distributed systems and smaller multichannel applications.

The Magnarray 3D, also available in the 3D Cinema version, uses three 3" full-range drivers, offering 95.5 dB SPL (1W/1m) sensitivity, 6 Ohms impedance, and 120W recommended power, providing increased impact and directional control for immersive applications.

The Magnarray 6D features six 3" full-range drivers, achieving 98.5 dB SPL (1W/1m) sensitivity, 6 Ohms impedance, and 240W recommended power, making it suitable for large spaces that require extended coverage and consistent sound pressure.

The Magnarray 12D, with twelve 3" full-range drivers, delivers 101.5 dB SPL (1W/1m) sensitivity, 6 Ohms impedance, and 480W recommended power, making it the ideal solution for large-scale projects and high-demand environments where intelligibility and impact must be preserved over long distances.
