Soundbar

Sound is what transforms image into emotion.

Two soundbars, one idea: integrating sound, image and architecture into a single, coherent experience

Magna Audio presents two passive soundbars for projects where TV audio must follow the architecture: the Outline Soundbar and the Cinemarray Soundbar. Custom-built to the exact width of the TV or display, they integrate into living rooms, TV rooms, home theaters, bedrooms and offices.

Outline extends this integration to patios, gourmet areas and other outdoor spaces. Both are available in two- or three-channel configurations with integrated, dimmable LED lighting, bringing sound and light together in a single composition.

The linear language of the Outline series, applied to TV sound.

Outline Soundbar

Design

With a linear profile and discreet proportions, the Outline Soundbar integrates with the architecture as part of the wall composition, accompanying the TV without competing with it. It can be installed on-wall or placed on furniture, in indoor and outdoor settings: from the living room and bedroom to the patio and gourmet area. Length is custom-made to the width of the TV or display, from 39" (994 mm) to 102" (2,600 mm), preserving the proportion of the whole.

Finishes

The aluminum enclosure is available in painted finishes ranging from neutral tones to corten steel, cognac and olive green, in direct dialogue with the materials of the project. The front grille combines fabric and aluminum. On the wall version, integrated LED lighting, in warm white with PWM dimming, sits in the lower bracket, reinforcing the architectural character of the series and establishing a precise relationship between sound, light and surface.

Performance

The differentiator of the Outline Soundbar is its flexibility of configuration. The same piece serves a stereo (2.0) TV system, a three-channel (3.0) arrangement with a dedicated center channel for dialogue, or a distributed audio project. Each channel uses 3" full-range drivers, in versions with one, two or three drivers per channel, depending on the acoustic scale the space requires. The enclosure is ported in the two-channel version and sealed in the three-channel version, with construction prepared for outdoor use.

Cinema-scale acoustics, integrated into the wall.

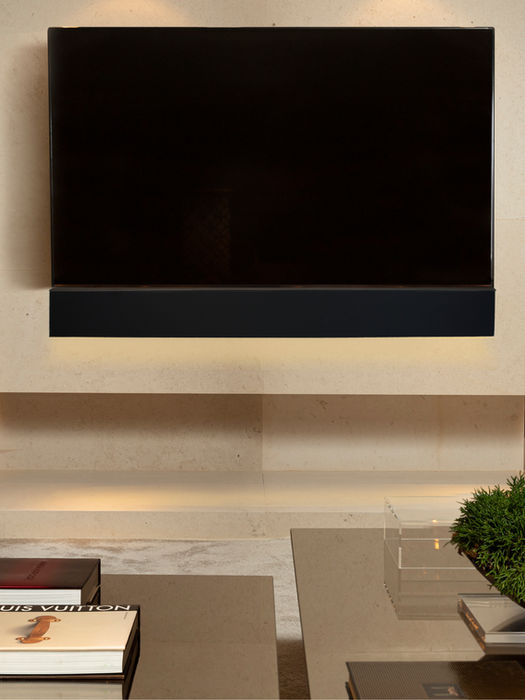

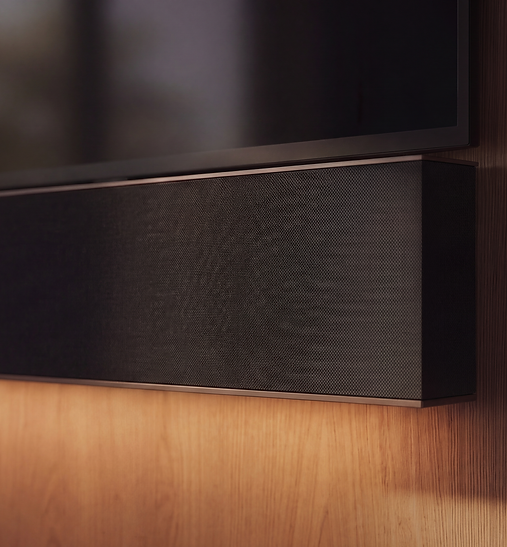

Cinemarray Soundbar

Design

Developed for home theaters and TV rooms, the Cinemarray Soundbar was designed for indoor spaces where the cinema experience must coexist with the design of the room. It can be installed on-wall or built in (in-wall), blending into the wall panel, the millwork or the TV niche. Length is custom-made, from [min.] to 110" (2,794 mm), accompanying large-format TVs and displays.

Finishes

The construction combines an MDF enclosure with painted aluminum edges, in tones ranging from white and sand to champagne, corten steel and olive green. The front grille expands the possibilities of composition, with textured and fabric options, including bouclé and earthy tones, bringing the soundbar closer to the language of furniture and wall coverings. At the bottom of the structure, in the center, integrated LED downlights, in warm or natural white with PWM dimming, create a discreet accent of light beneath the TV.

Performance

The difference from Outline lies in acoustic scale. The Cinemarray combines two 3" full-range drivers with two 5" woofers in a ported enclosure, extending bass response and room fill without the need for visible speakers. Configured in two or three channels, it delivers soundtracks and effects with body and dialogue with clarity, forming the foundation of an architectural home theater system.
