AURA SUB

aura sub p.png

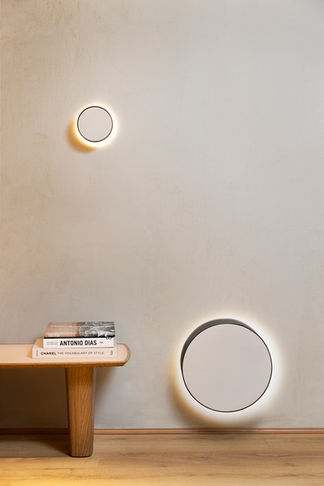

 With an innovative format and finish, on the wall  installation, and with the possibility of both outdoor and indoor use, with or without integrated lighting, the Aura Subwoofer does not go unnoticed, but few will say that it is a subwoofer.

Available in three different form factors, the line-up has five full-range speaker options with models from 40W to incredible 125W, plus three subwoofer options. On the lighting, it can come with no led or can have warm or natural white temperature color.

Aura Sub.png

S P E C I F I C A T I O N S

AURA 55

aura 3.png

10.7” I 273mm

Placement Options

On Ceiling | On Wall

Indoor |  Outdoor


Use

Distributed Audio

Enclosure

Aluminum, Ported IP66

Recommended Amplifier

 2 x 60W

Drivers

2 x 5” Woofer

0.24”
6mm

Bracket

4.8” I 122mm

Aura mini.png

Impedance

8Ohms

Frequency Response

65Hz - 250Hz (-3dB)

Sensitivity

91dB SPL 1W/1m

Lighting

Yes | PWM Dimmable | 12V | Warm and Natural White

Weight

13 lbs | 5.96 Kg

Placement Options

On Ceiling | On Wall
Indoor
| Outdoor


Use
Distributed Audio

Enclosure

Aluminum, Sealed IP66


Type

Passive Subwoofer


Recommended Amplifier
80W

Drivers
6” Woofer



Aura Sub 6

aura sub.png

Bracket

0.24”
6mm

10.7" I 273mm

5" I 127mm

Impedance

8Ohms

Frequency Response
60Hz - 2KHz (-3dB)

45Hz - 5KHz (-6dB)

Sensitivity
91dB SPL 1W/1m

Lighting

Yes | PWM Dimmable |

12V | Warm and
Natural White


Weight
9 lbs
| 4.06 Kg



Placement Options

On Ceiling | On Wall
Indoor
| Outdoor


Use
Distributed Audio
|

Multichannel


Enclosure

Aluminum, Sealed IP66


Type

Passive Subwoofer


Recommended Amplifier
200W


Drivers
8” Woofer

Aura Sub 8

aura sub.png

Bracket

0.24”
6mm

10.7" I  273mm

5.9"  I 150mm

Impedance

8Ohms

Frequency Response

60Hz - 1KHz (-3dB)

33Hz - 3KHz (-6dB)


Sensitivity
93dB SPL 1W/1m


Lighting

Yes | PWM Dimmable |

12V | Warm and
Natural White


Weight
16.3 lbs
| 7.39 Kg

C O L O R S

FABRIC

tela tecido.png

Painted

ALUMINIUM

ENCLOSURE

Gabinete - novas cores.png

Brusched
